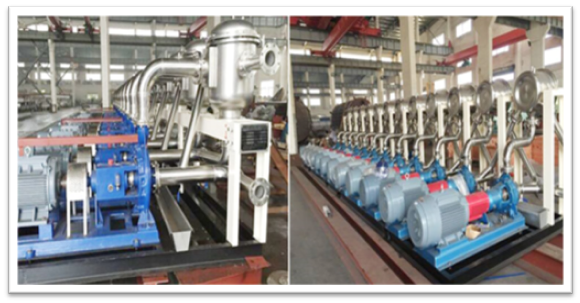

The twelve-stage cyclone separator is used to purify and wash starch milk. Its main purpose is to remove soluble and insoluble protein and fine fiber sugar to purify starch. Compared with the disc separator, it has the advantages of simple equipment structure, reliable operation and convenient maintenance. It can be used under certain differential pressure. Separation of 4μ size particles, which uses centrifugal force to separate suspended particles with different particle sizes and specific gravities. The centrifugal force of the particles, the particles of specific gravity in the slurry move to the wall of the cyclone barrel and spin down. Finally, underflow with a larger concentration, particles with a smaller specific gravity rotate upwards around the center and overflow with a lower concentration.
The twelve-stage cyclone separator is used to purify and wash starch milk. Its main purpose is to remove soluble and insoluble protein and fine fiber sugar to purify starch.
It has the advantages of simple equipment structure, reliable operation and convenient maintenance. It can be used under certain differential pressure.
Type | YDX275-Ⅰ | YDX350-Ⅰ | YDX350-Ⅱ | YDX405-Ⅰ | YDX405-Ⅱ | YDX500-Ⅰ | YDX600-Ⅰ |
ProductionT/year | 8000-15000 | 20000-30000 | 60000 | 50000 | 100000 | 80000 | 120000 |
Specifications | ф10 | ф10 | ф10 | ф10 | ф10 | ф10 | ф10 |
Pressure Mpa | >0.6 | >0.6 | >0.6 | >0.6 | >0.6 | >0.6 | >0.6 |
Flow m3/h | 15-30 | 30-40 | 55-65 | 45-55 | 100-110 | 60-80 | 100-120 |
Series | 9-12 | 9-12 | 12-15 | 12-15 | 12-15 | 12-15 | 12-15 |
Power Kw | 11 | 15--22 | 37 | 30 | 55 | 37-45 | 55 |
