Germ cyclone

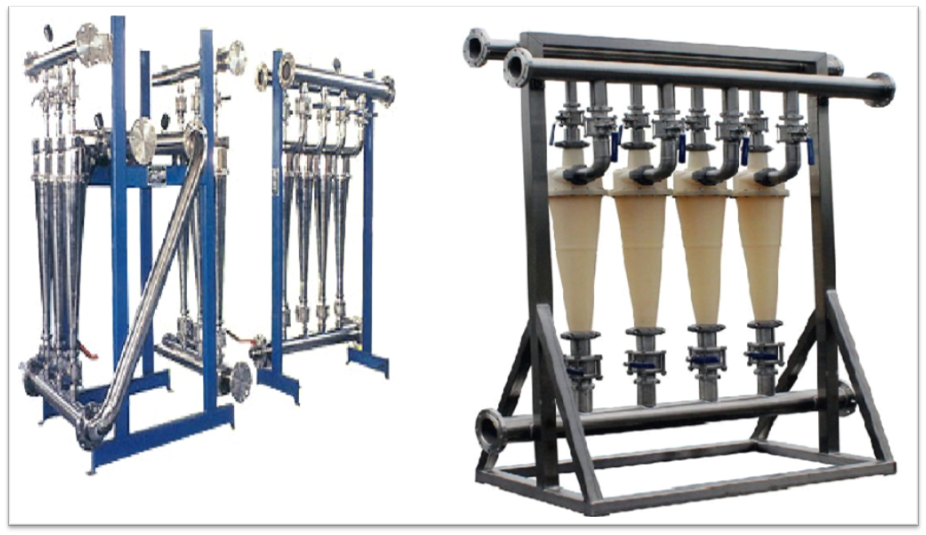

The germ cyclone is mainly used for the germ separation of crops, including corn, wheat, beans and so on. In the production process of corn starch， after coarse crushing, the germ is separated by swirling under a certain pressure to achieve the purpose of extracting germ, which is an ideal equipment to improve the yield of starch and germ. The equipment is simple in structure, advanced in design, pays attention to materials, durable, stable in operation, and has good working performance. The equipment is mainly composed of a bracket, a swirl tube, a feed pipe, and a discharge pipe.
The germ cyclone is mainly used for the germ separation of crops, including corn, wheat, beans and so on.
After coarsely crushed corn (degerminated), the germ is in a free state. The crushed materials enter the cyclone tube in a tangential direction from the feed port under a certain pressure for rotary motion. Due to the difference in specific gravity between the germ and the rest, under the action of centrifugal force, the free germ overflows from the overflow port, and other materials are discharged from the lower discharge
Type | DPX125 | DPX125×2 | DPX125×3 | DPX125×4 | DPX225 | DPX225×2 | DPX225×3 | DPX225×4 | Remark |
Processing corn weight（t/h） | 1.5-2 | 3.0-4.0 | 4.5-6.0 | 6.0-8.0 | 5.0-6.0 | 10.0-12.0 | 15.0-18.0 | 20.0-24.0 | |
Cylinder diameter（mm） | 125 | 125 | 125 | 125 | 225 | 225 | 225 | 225 | materialPA |
Cone height（mm） | 450 | 450 | 450 | 450 | 850 | 850 | 850 | 850 | materialPA |
Feed pressure（Mpa） | 0.45-0.55 | 0.45-0.55 | 0.45-0.55 | 0.45-0.55 | 0.45-0.55 | 0.45-0.55 | 0.45-0.55 | 0.45-0.55 |
