Closed filter
Closed filter is a high-efficiency, energy-saving, closed operation precision clarification filtration equipment, which is widely used in chemical, oil, petroleum, paint, food, pharmaceutical and other industries. The product has a unique design structure, small volume, high filtration efficiency, high transparency of the filtrate, good fineness, no material loss, no consumption of filter paper, filter cloth or filter core, etc. Therefore, the filtration cost is very low, and the equipment is easy to operate, maintain and clean. Mainly it is used in food, medicine, beverages, grease, petrochemical products, organic chemicals, paints and varnishes, resins, inorganic chemicals, minerals, etc.
It is used widely in food, medicine, beverages, grease, petrochemical products, organic chemicals, paints and varnishes, resins, inorganic chemicals, minerals, etc.

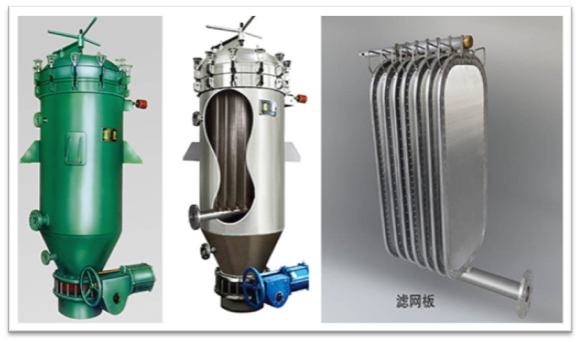

The main body of the filter is composed of a shell, a filter plate, a cover lifting structure, an automatic slag discharge device, etc., Among them, the filter plate is composed of multiple layers of stainless steel filter material, and is installed on the central liquid collecting pipe, which is very convenient to disassemble and clean. During filtration, the filtrate containing the filter aid enters the filter through the conveying system to form a stable filter cake on the filter screen (the filter cake layer can provide countless fine channels), and then the filtrate is actually filtered through the pores of the filter cake layer
Type | Filter area(m2) | Cake volume(L) | Processing capacity(T/h) | Working pressure(Mpa) | Working temperature(℃) | Filter cylinder volume(L) | Weight (kg) | |||
Oil | Resin | Drinks | Rated pressure | Max pressure | ||||||
NYB -2 | 2 | 30 | 0.4-0.6 | 1-1.5 | 1-3 | 0.1-0.4 | 0.5 | ≤150 | 120 | 300 |
NYB-4 | 4 | 60 | 0.5-1.2 | 2-3 | 2-5 | 250 | 400 | |||
NYB-7 | 7 | 105 | 1-1.8 | 3-6 | 4-7 | 420 | 600 | |||
NYB-10 | 10 | 150 | 1.6-3 | 5-8 | 6-9 | 800 | 900 | |||
NYB-12 | 12 | 240 | 2-4 | 6-9 | 8-11 | 1000 | 1100 | |||
NYB-15 | 15 | 300 | 3-5 | 7-12 | 10-13 | 1300 | 1300 | |||
NYB-20 | 20 | 400 | 4-6 | 9-15 | 12-17 | 1680 | 1700 | |||
NYB-25 | 25 | 500 | 5-7 | 12-19 | 16-21 | 1900 | 2000 | |||
NYB-30 | 30 | 600 | 6-8 | 14-23 | 19-25 | 2300 | 2500 | |||
NYB-36 | 36 | 720 | 7-9 | 16-27 | 23-31 | 2650 | 3000 | |||
NYB-40 | 40 | 800 | 8-11 | 21-34 | 30-38 | 2900 | 3200 | |||
NYB-45 | 45 | 900 | 9-13 | 24-39 | 36-44 | 3200 | 3500 | |||
NYB-52 | 52 | 1040 | 10-15 | 27-45 | 42-51 | 3800 | 4000 | |||
NYB-60 | 60 | 1200 | 11-17 | 30-52 | 48-60 | 4500 | 4500 | |||
NYB-70 | 70 | 1400 | 12-19 | 36-60 | 56-68 | 5800 | 5500 | |||
NYB-80 | 80 | 1600 | 13-21 | 40-68 | 64-78 | 7200 | 6000 | |||
NYB-90 | 90 | 1800 | 14-23 | 43-72 | 68-82 | 7700 | 6500 | |||
