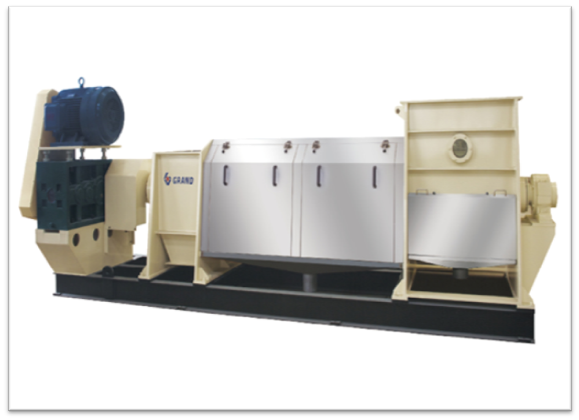

Spiral squeezed machine
The spiral squeezed machine is suitable for dehydration of wet materials such as starch, feed and other industries. Its structure is a conical shell with a built-in conical spiral belt of unequal pitch, which forms a double factor of pitch length and height during rotation. The dehydrated material is discharged from the discharge end, and the extruded water flows out through the screen holes in the shell. The compression ratio is large, the dehydration effect is good, the discharge moisture is low, the operation is stable without vibration, and The production can be performed continuously.
The spiral squeezed machine is suitable for dehydration of wet materials such as starch, feed and other industries.
(1) This machine is a continuous production with high dehydration efficiency.
(2) Simple structure, easy to use and maintain.
(3) The whole machine has a compact structure, small footprint and convenient transportation.
(4) The residual liquid containing starch can be recycled, which can not only reduce costs and increase economic efficiency, but also improve the production operating environment.
Type | LJ350 | LJ350P | LJ500 | LJ500P | LJ600 |
Material type | Fiber | Germ | Fiber | Germ | Fiber |
production T/h | 1.6-1.8 | 1.25-1.35 | 3.5-3.8 | 2.8-3 | 4.8-5.2 |
Raw material moisture％） | 85-90 | ||||
Production moisture（％） | 55-60 | ||||
Spindle speed（r.p.m） | 12 | 12 | 14 | 14 | 14 |
Motor power（kw） | 7.5 | 7.5 | 22.5 | 22.5 | 37 |
Overall size (mm） | 900×1180 | 900×1180 | 5320×1130×1660 | 5020×1130×1660 | 5717×1130×1750 |
