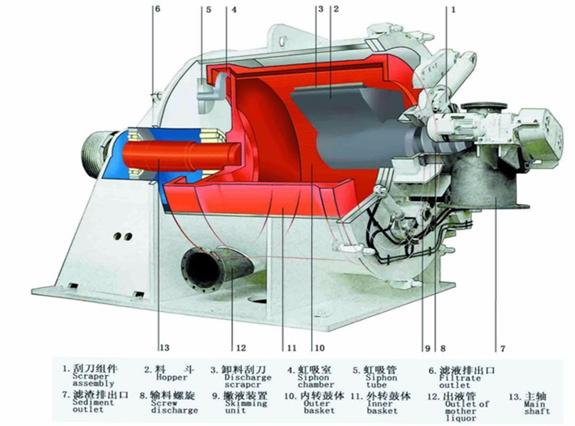

Scraper centrifuge
The scraper discharge centrifuge is a filter centrifuge with fully automatic control, continuous operation and intermittent discharge. It can complete backflushing, feeding, deliquoring, washing, draining and discharging at full speed or variable speed. It is suitable for separating crystalline or short fibrous materials with a particle size (particle size) of 5 μm to 5 mm and a suspension concentration (solid phase volume ratio) of 1% to 40%. It is particularly suitable for large-load production and occasions requiring full washing.
It is used widely in industries such as chemical industry, grain deep processing, food, pharmaceutical, light industry, etc. Typical application materials are potassium chloride, ammonium chloride, baking soda, calcium sulfate, sodium metabisulfite, calcium carbonate, activated carbon, amino acids, corn starch, tapioca starch, wheat starch, modified starch, vitamins, molasses, erythromycin, raw materials Medicines, pharmaceutical intermediates, etc.
(1) Fully automatic operation, low labor intensity;
(2) Fully enclosed and good operating environment;
(3) Each actuator adopts hydraulic system for automatic control, stable and reliable operation;
(4) Electric is controlled by PLC, with accurate action and convenient adjustment;
(5) Drive by frequency converter or hydraulic coupling, start and stop smoothly;
(6) Increase the siphon force and shorten the separation time;
(7) Large production capacity and low moisture content of filter cake;
(8) Uniform fabric and low vibration;
(9) The filtering speed can be adjusted freely, and the operation flexibility is large;
(10) The regeneration effect of filter media is good;
(11) High washing efficiency and low consumption of washing liquid.
Type | GKH800-NB | GKH1250-NK | GKH1600-NA | GKH1800-NA |
Drum diameter（mm） | 800 | 1250 | 1600 | 1800 |
Drum length （mm） | 450 | 600 | 1000 | 1250 |
Drum speed（r/min） | 1550 | 1200 | 950 | 800 |
Loading weight limit（Kg） | 130 | 450 | 1000 | 1760 |
Loading volume（L） | 100 | 355 | 830 | 1325 |
Separation factor（Fr） | 1070 | 1006 | 800 | 645 |
Main motor power（kw） | 45 | 90 | 132 | 200 |
Overall size（mm） | 2480×1670×1310 | 4050×2300×1960 | 5200×2745×2295 | 5800×2840×2600 |
Overall weight（Kg） | 3820 | 10760 | 16550 | 24900 |
