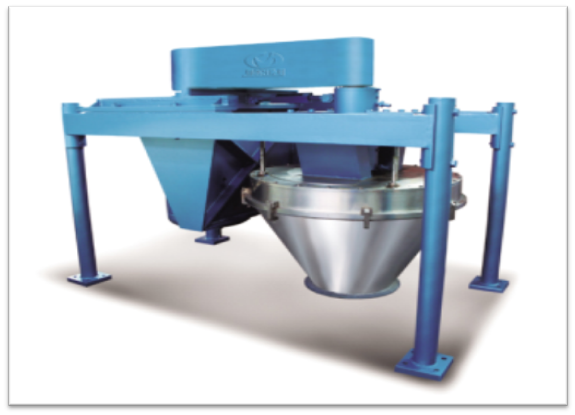

Pin mill
Pin mill is a high-efficiency modern fine grinding equipment. In addition to the advantages of compact structure, short process route, easy operation, large production capacity, small footprint, etc. It has the following characteristics: good product quality, high yield, simplifying the starch production process and improving the lubrication of bearings.
The equipment is used widely in the processing of starch such as corn, potatoes, beans, etc., and it is also suitable for the crushing and processing of fruit juice and grain. This is the ideal equipment for fine grinding processing in starch and food industries.
1、good product quality, high yield.
2、simplifying the starch production process.
3、 improving the lubrication of bearings.
Type | LZM685-N | LZM1000-N |
Outer circle diameter of moving disc（mm） | 685 | 1015 |
Moving disc speed（r/min） | 3750/3750/4100 | 3100 |
External speed of moving disk（m/s） | 140/140/147 | 164.8 |
Dry matter content | >300g/1 | >300g/1 |
Free starch content | ≤10% | ≤10% |
Production capacity (t/h) | 3-5 | 10-15 |
Linked starch content | ≤15% | ≤15% |
Ratio of coarse residue | ≥2.5：1 | ≥2.5：1 |
Mechanical noise (dBA) | ≤90 | ≤106 |
Main motor power（Kw） | 55 | 220 |
Lubricating oil pressure（Mpa） | 0.10-0.15 | 0.10-0.15 |
Oil pump motor power（Kw） | 0.75 | 0.75 |
Overall size（mm） | 2000×1200×1635 | 2870×1880×2437 |
weight（Kg） | 2300-2400 | 6500 |
