Pulverizer

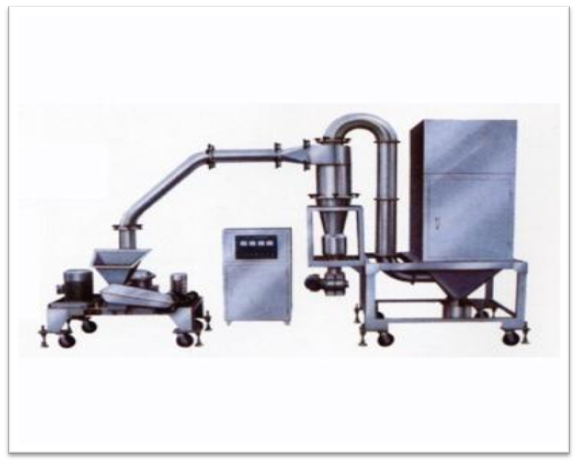

The machine is composed of three parts: main machine, auxiliary machine and electric control box. It has various properties such as winnowing type, no screen, no net, uniform particle size, etc. The production process is continuous.
It is used widely in food, medicine, chemical industry
The material enters the crushing chamber through a screw conveyor,which is sheared and crushed by a high-speed rotating blade, and the material is transported into the cyclone separator by the method of negative pressure air transportation.
Type | WFJ-15 | WFJ-30 |
Production capacity (kg/h) | 10-200 | 30-800 |
Feed particle size (mm) | ＜10 | ＜15 |
Production size(mesh) | 80-320 | 80-320 |
Power(kw) | 13.5 | 46 |
main speed (r/min) | 6000 | 3800 |
Overall size(mm) | 4200*1200*2700 | 9000*1500*3800 |
Weight(kg) | 850 | 1500 |
