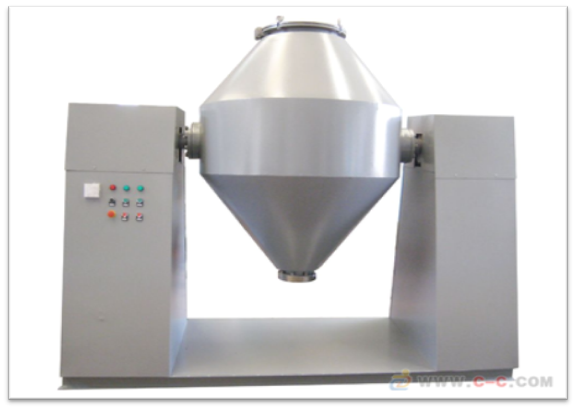

Double cone rotary vacuum dryer
The double cone rotary vacuum dryer is a new type of dryer that integrates mixing and drying. Matching the condenser, vacuum pump and dryer to form a vacuum drying device. Advanced design, simple internal structure,be easy to clean, all materials can be discharged, easy to operate, it can reduce labor intensity and improve working environment. At the same time, as the container itself rotates, the material also rotates but no material is accumulated on the wall, so the heat transfer coefficient is high and the drying rate is large, which not only saves energy, but also the material is dried uniformly and fully, and the quality is good. It is used widely in the drying of materials in pharmaceutical, chemical, food, dye and other industries.
It is used widely in the drying of materials in pharmaceutical, chemical, food, dye and other industries.
The SZG double-cone rotary vacuum dryer is a double-cone rotary tank. When the tank is under vacuum, steam or hot water is passed into the jacket for heating, and the heat contacts with the wet material through the inner wall of the tank. The water vapor is evaporated after the wet material absorbs heat ,which is pumped away by the vacuum pump through the vacuum exhaust pipe. Because the tank body is in a vacuum state, and the rotation of the tank body causes to continuously flip up and down, inside and outside, so the drying speed of the material is accelerated, the drying efficiency is improved, and the purpose of uniform drying is achieved.
Item | type | ||||||||||
Name | Unit | 100 | 200 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4500 |
Total volume | L | 100 | 200 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4500 |
Working volume | L | 50 | 100 | 175 | 250 | 375 | 500 | 750 | 1000 | 1500 | 2250 |
Heating capacity | m² | 1.16 | 1.5 | 2 | 2.63 | 3.5 | 4.61 | 5.58 | 7.5 | 9.6 | 13.8 |
Speed | r/min | 6 | 4 | 6 | |||||||
Power | kW | 0.75 | 1.1 | 1.5 | 1.5 | 2 | 3 | 3 | 4 | 5.5 | 7.5 |
Shelf height | mm | 1810 | 1910 | 2090 | 2195 | 2500 | 2665 | 2915 | 3055 | 3330 | 4210 |
Tank pressure design | Mpa | -0.09～0.096 | |||||||||
Mezzanine pressure design | Mpa | 0.3 | |||||||||
