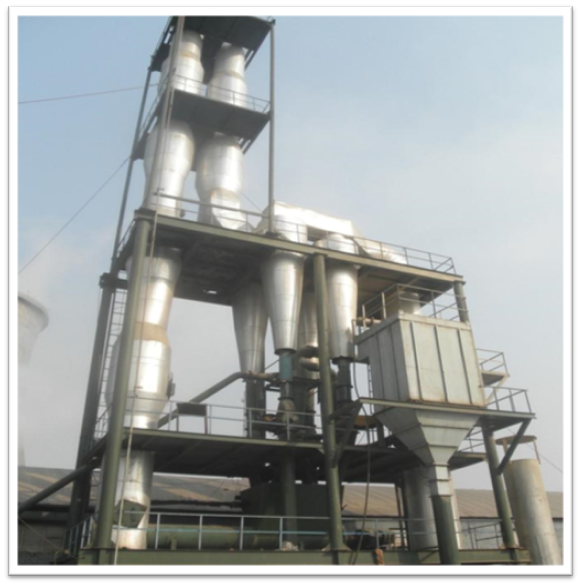

MQG series airflow dryer
The MQG series airflow dryer uses high-speed hot airflow to suspend the material to be dried, and the pulse airflow generated by the change of the pipe diameter makes the material continuously roll over, and the material is dried during the airflow transportation process. It is used for the final drying of powdery and flake materials such as corn and potato starch, protein powder and some heat-sensitive materials.
It is used for the final drying of powdery and flake materials such as corn and potato starch, protein powder and some heat-sensitive materials.
(1) Using segmented variable-diameter pulse tubes to change the airflow velocity pulsation, improving greatly the heat transfer coefficient, and saving greatly energy in continuous drying operations.
(2) The material drying process only takes about 1 second, and the material temperature does not exceed 50 ℃
(3) The device operates under negative pressure, the working environment is clean, pollution-free, and the efficiency is high.
(4) The overall electrical consumption and steam consumption are lower than other drying equipment, which is an energy-saving product.
(5) The structure is simple, the operation is convenient, the floor space is less, and the investment is low.
Type | Feed moisture content% | Finished product moisture content % | Production t/h | Steam consumption Kgsteam/kgwater | Thetotal power （kw） |
MQG-0.5 | < 40 | 12～14 | 0.5 | 1.8～2 | 17 |
MQG-0.8 | < 40 | 12～14 | 0.8 | 1.8～2 | 25.5 |
MQG-1.2 | < 40 | 12～14 | 1.2 | 1.8～2 | 29.5 |
MQG-1.6 | < 40 | 12～14 | 1.6 | 1.8～2 | 40 |
MQG-2 | < 40 | 12～14 | 2 | 1.8～2 | 46.5 |
MQG-2.6 | < 40 | 12～14 | 2.6 | 1.8～2 | 56.5 |
MQG-3.2 | < 40 | 12～14 | 3.2 | 1.8～2 | 67 |
MQG-4 | < 40 | 12～14 | 4 | 1.8～2 | 93 |
MQG-5 | < 40 | 12～14 | 5 | 1.8～2 | 143.5 |
MQG-6 | < 40 | 12～14 | 6 | 1.8～2 | 165.5 |
MQG-9 | < 40 | 12～14 | 9 | 1.8～2 | 200 |
MQG-10 | < 40 | 12～14 | 10 | 1.8～2 | 210 |
MQG-15 | < 40 | 12～14 | 15 | 1.8～2 | 338 |
MQG-20 | < 40 | 12～14 | 20 | 1.8～2 | 418 |
