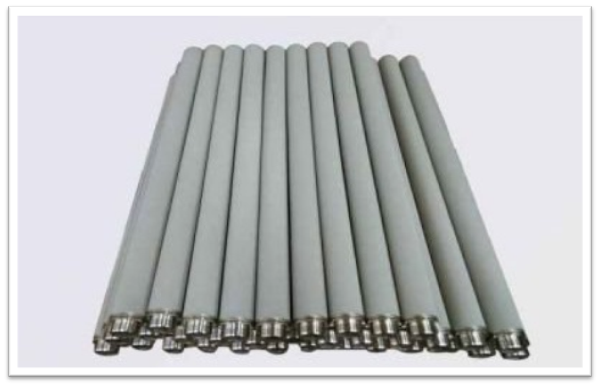

DL series bag filter is mainly composed of filter cylinder barrel, filter cylinder cover and quick opening mechanism, stainless steel filter bag reinforced mesh and other main components. The liquid flows into the filter bag from the side inlet pipe of the filter housing. The filter bag itself is installed in the reinforcement mesh. The liquid can penetrate the filter bag of the required fineness level to obtain qualified filtrate, and the foreign particles are captured by the filter bag. TL series filter is composed of a number of filter elements mounted vertically on the filter plate in a closed cylinder. It relies on the filter element as the filter medium to perform pressure filtration in a closed container. The design structure is unique, the volume is small, the loading and unloading of the filter element is very convenient, and the cleaning of the filter cartridge is convenient and simple.
It is used widely in paint, beer, plant oil, medicine, cosmetics, chemicals, petroleum products, textile chemicals, photosensitive chemicals, electroplating solutions, milk, mineral water, thermal solvents, latex, industrial water, sugar water, resin, ink, industry wastewate juice, edible oil, wax, and so on industry .
Type DL technical parameters
Type | Filter area | Size of inlet and outlet (mm) | The highest velocity (M3/h) | The highest working pressure (MPA) | The highest working temperature(℃) | Filtration precision (μm) |
DL- 1P1S | 0.25 | DN 40 | 10 | 0.4 | 120 | 1、5、10 |
DL- 1P2S | 0.5 | DN 40 | 20 | |||
DL- 4P1S | 1 | DN 80 | 40 | |||
DL- 4P2S | 2 | DN 80 | 80 | |||
DL- 6P1S | 1.5 | DN 100 | 60 | |||
DL- 6P2S | 3 | DN 100 | 120 | |||
DL- 8P1S | 2 | DN 125 | 80 | |||
DL- 8P2S | 4 | DN 125 | 160 | |||
DL- 10P2S | 5 | DN 125 | 200 | |||
DL- 12P2S | 6 | DN 150 | 240 | |||
DL-16P2S | 8 | DN 150 | 320 | |||
DL- 20P2S | 10 | DN 200 | 400 | |||
DL- 24P2S | 12 | DN 200 | 480 | |||
DL- 28P2S | 14 | DN 200 | 560 | |||
DL- 32P2S | 16 | DN 200 | 640 |
Type TL technical parameters
Type | Cylinder diameter (mm) | Filtration precision (um) | The highest working pressure (MPa) | The highest working temperature | Size of inlet and outlet(mm) | Shape size (mm) |
TL(O)-3× 500 | Ф219 | 1、3、5、10、15、20、30、50、70、100、125 | 0.4 | 120 | DN40 | Ф360× 1110 |
TL(O)-6× 500 | Ф273 | DN50 | Ф425× 1230 | |||
TL(O)-8× 500 | Ф300 | DN50 | Ф485× 1230 | |||
TL(O)-12× 500 | Ф400 | DN65 | Ф620× 1360 | |||
TL(O)-22× 500 | Ф500 | DN80 | Ф730× 1430 | |||
TL(O)-35× 500 | Ф600 | DN100 | Ф845× 1500 |
