Oil press
Our series of screw oil press machine is composed of such components as electric appliance control, hot pressing, adjustment, driving and vacuum oil filter. The squeezing bolt is made of alloy steel treated by carburization to improve its surface hardness and wear resistance; the squeezing bolt are grinded by surface grinder to ensure the accuracy of oil thread and improve oil yielding rate; the standard components for power distribution, vacuum and heating are domestic famous brands to optimize machine configuration; the surface of machine are treated by stainless steel and chromium plating technology in accordance with the standards of food hygiene.
Automatic oil press machine is suitable for rapeseed, peanut, soybean, sunflower, rapeseed, sesame seed, tea seed, walnut, olive, corn germ, rice bran, safflower seed, seeds of hippophae rhamnoides and so on.

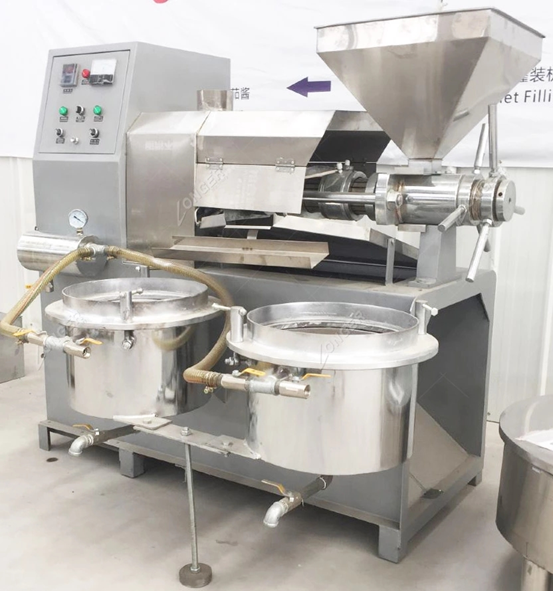

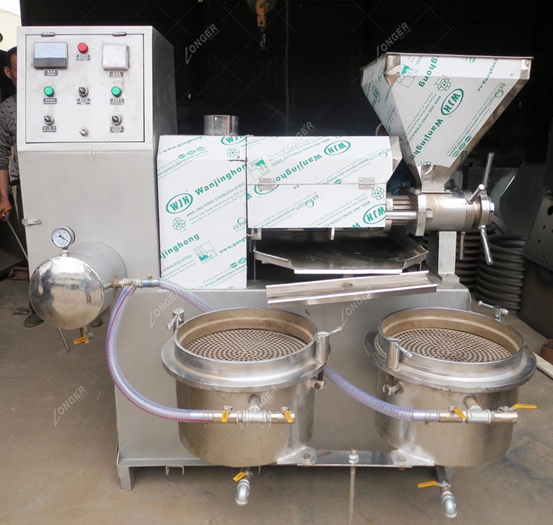

Automatic screw oil press is mainly composed of electric control, automatic heating, adjustment, transmission and vacuum oil filter components.
Automatic screw sunflower oil press machine is to separate the oil from oil bearing materials by teh pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of oil press machine, they have similar theories in screw expeller pressing. Because the screw type oil press machine is mainly used by extrusion theroy, so it is also called as oil extruder or oil extrusion process.
Model LGYL-80A LGYL-100A LGYL-120A LGYL-130A
Screw diameter 80mm 100mm 120mm 130mm
Capacity(t/24h) 43163 43226 43259 43385
Motor(KW) 5.5 7.5 11 15
Weight(kg) 700 1000 1400 1700
Size(mm) 1480*630*1570 2200*810*1850 2200*1650*1750 2350*840*1850
