Acid mist absorber

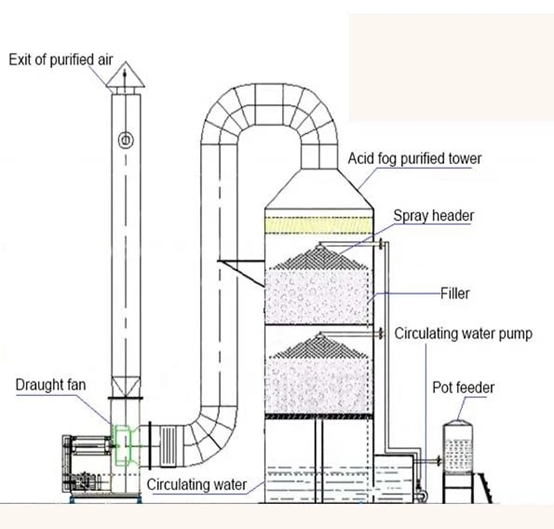

The FRP Acid Mist Gas Absorption Scrubber Tower is mainly composed of Water tank, Circulating water, Packing layer, Spraying system, Demister etc.The FRP Acid Mist Gas Absorption Scrubber Tower is designed to capture dust particles, VOCs, chemical fumes, and other water / chemically soluble fumes and Vapors generated in industrial process.Desulphurization spray layer is based on the upper part of the tower, the absorption tower slurry circulating pump corresponding to each spray layer. The nozzle configuration of spray layer is simulated designed by professional software in order to ensure good contact with alkali and acid reverse gasreaction; and finally reach purification effects. Demister installs in the upper of desulphurization tower, a total of two levels.The net is used to separate the entrainment of flue gas cloud droplets, and droplet concentration in flue gas export from mist eliminator is less than 75 mg/Nm3 (dry basis).At the same time, the equipment also has spray washing device to the tiny dust particles adhesion and desulphurization of flue gas crystallization on the demister system resistance increases.
