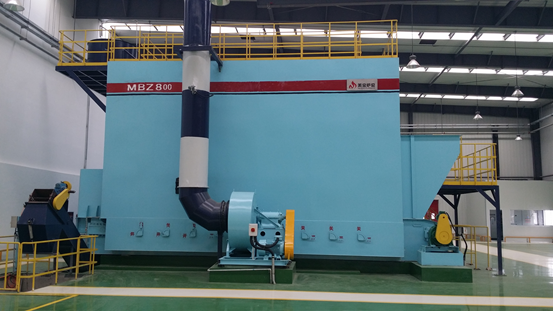

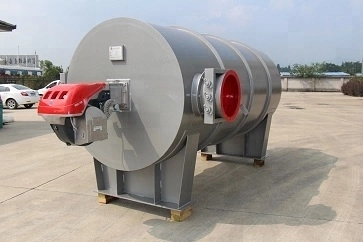

Hot air stove
The furnace uses the high temperature resistant method so that its life is much longer than the life of the pipe arrangement hot air furnace. The furnace uses the smoke and air longitudinal splashing heat radiation sheets and the negative pressure smoke elimination mode. There is no dust collected on the heat exchange position. There is no need to carry out the cleaning.The heat feature is stable. Various coal and wood can be used as the fuel.The furnace is equipped with the air leading device and the combustion is complete.All the technical and economic indexes of the furnace have reached the advanced level at home.
The furnace is the versatile hot air equipment.It is used with other equipment for drying various materials. The furnace is widely used for the heating and moisture removing for the grain, seed, feed, fruit , dewatering vegetable, mushroom,edible fungus, tremella, tea, tobacco leaf, other farming products, food, medicine,chemical raw material, light and heavy industry products.
The furnace combines the combustion with the heat exchange,using the latest indirect heating technology that the heat exchange is taken place at the positionof the high temperature in the furnace. The smoke and the air go into the different channels, without any pollution for the heating. The heat efficiency rate is high(up to 60-75%).The temperature increase is fast. The furn ace is small in size, easy in the installation,reliable in the operation and low in the price (making a comparison with one ton boiler, the price of this System is only half price of the heating system for the boiler.)
odel/parameters | Heat output ×104kcal/h | Output air volume(m3/h) | Air temperature | The volume of coal consumption (kg/h) | Induced draft fan flue models |
JRF4-2.5 | 2.5-3 | 1500-560 | 60-200 | 10-12 | Cooking kitchen work use of the blowers 80-100W |
JRF4-4 | 4-5 | 3500-930 | 60-200 | 14-17 | Cooking kitchen work use of the blowers |
JRF5-8 | 6-8 | 5600-1480 | 60-200 | 18-24 | Cooking kitchen work use of the blowers 350-550W |
JRF5-15 | 10-15 | 12000-2160 | 60-300 | 40-45 | Y5-47 4C 2000rpm 2.2kw |
JRF5-30 | 25-30 | 25000-4330 | 60-300 | 80-90 | Y5-47 4C 2520rpm 3kw |
JRF5-60 | 55-60 | 45000-8660 | 60-300 | 150-175 | Y5-47 4C 2900rpm 4kw |
JRF6-100 | 80-100 | 84000-1400 | 60-300 | 220-290 | Y5-47 5C 2900rpm 7.5kw |
JRF6-160 | 150-160 | 134400-23000 | 60-300 | 410-460 | Y5-47 6C 2620rpm 15kw |
JRF6-160 | 66.88 | 134400-23000 | 480-490 | 480-490 | GY-1 18.5kw |
JRF6-200 | 83.60 | 170000-28000 | 600-620 | 600-620 | GY4-1 18.5kw |
