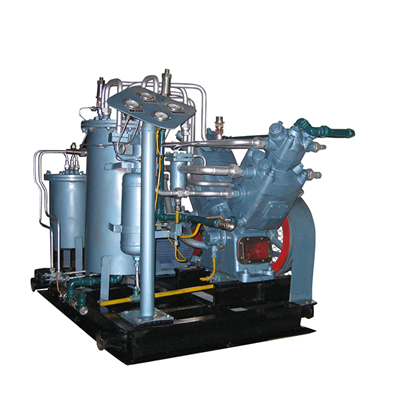

Hydrogen compressor
The compressor adopts oil-free lubrication structure and can run continuously for a long time. Meet the process requirements,suitable for hydrogen. All oil-free lubrication compressors with various parameters and requirements can be customized according to customer requirements.
It is widely used in the compression of hydrogen, such as chemical industry, food, sugar alcohol and other industries
1. Small size and high efficiency
2. No leakage and high compression ratio
3. No oil, good cooling
4. Convenient and safe operation
The Main Parameters of Hydrogen Gas Compressor | ||
Compressor | Model | ZW-0.74/204 |
Structural style | Z type,oil-free lubrication | |
Compressed medium | Hydrogen gas( ≤ 50ppm ) | |
Volume Flow (m3/min) | 0.74 | |
Capacity(Nm3/h) | 40 | |
Compression stages | 5 | |
Rotational speed(r/min) | 740 | |
Cooling method | Water-cooling | |
Intake pressure(MPa) | Atmospheric pressure | |
Discharge pressure(MPa) | 20.4 | |
Intake temperature(℃) | ≤40 | |
Displace temperature(℃) | ≤150 After water-cooing ≤50 | |
Electric motor | Model | YB3-180M-4 |
Rotational speed(r/min) | 1752 | |
Rated voltage(V) | 440,50Hz | |
Rated current(A) | 36.5 | |
Explosion-proof grade | DIICT4 | |
Rated power(kW) | 18.5 | |
