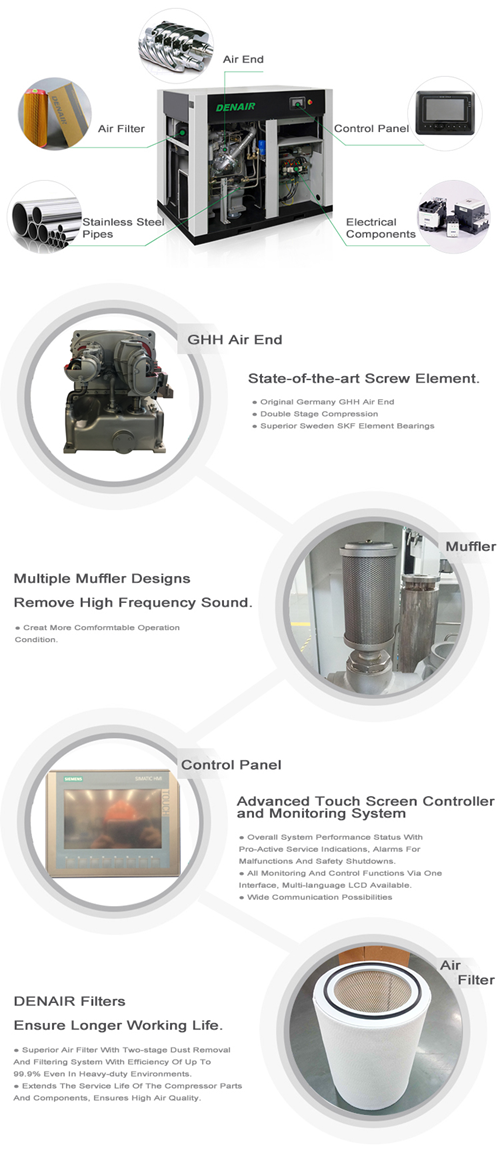

Imported top-grade main machine, as the third generation product of state-of –the art brand the world, with asymmetrical 5:6 tooth rotor, is provided with outstanding performance and high efficiency far beyond other similar-type brand. Full-intellectual control system and LCD screen, with self-diagnosis and protection devices, remote control and multi-host interlocking control, realizing unattended and high-tech operation. Y series three-phase asynchronous motor special for compressor, imported World famous brand bearing, F-level insulation, IP54 especially suitable for long-term use, safe and reliable. Imported oil filter, oil gas separation filter element, ternary separation, ensure oil content less than 0.001ppm, the trunk adopts metal pipe, safe for long –term operation without leakage or deformation, the V type drive belt is imported from Germany, and has a service life more than10000hous.
Model | Maximum working pressure | Capacity FAD* | Installed motor power | Dimensions(mm) | Weight | ||||||
bar(e) | psig | m³/min | cfm | kW | hp | L | W | H | kg | ||
DWW-55 | 7 | 102 | 9.35 | 330 | 55 | 75 | 2000 | 1200 | 1650 | 1900 | |
8 | 116 | 9.17 | 324 | 55 | 75 | 2000 | 1200 | 1650 | 1900 | ||
10 | 145 | 8.11 | 286 | 55 | 75 | 2000 | 1200 | 1650 | 1900 | ||
DWW-90 | 7 | 102 | 14.60 | 515 | 90 | 120 | 2800 | 1800 | 1860 | 2800 | |
8 | 116 | 14.32 | 506 | 90 | 120 | 2800 | 1800 | 1860 | 2800 | ||
10 | 145 | 13.55 | 478 | 90 | 120 | 2800 | 1800 | 1860 | 2800 | ||
DWW-110 | 7 | 102 | 20.27 | 716 | 110 | 150 | 2800 | 1800 | 1860 | 3200 | |
8 | 116 | 19.03 | 672 | 110 | 150 | 2800 | 1800 | 1860 | 3200 | ||
10 | 145 | 16.65 | 588 | 110 | 150 | 2800 | 1800 | 1860 | 3200 | ||
DWW-132W | 7 | 102 | 23.94 | 845 | 132 | 175 | 2800 | 1800 | 1860 | 3170 | |
8 | 116 | 22.47 | 793 | 132 | 175 | 2800 | 1800 | 1860 | 3170 | ||
10 | 145 | 20.19 | 713 | 132 | 175 | 2800 | 1800 | 1860 | 3170 | ||
DWW-160W | 7 | 102 | 27.26 | 862 | 160 | 215 | 2800 | 1800 | 1860 | 3300 | |
8 | 116 | 25.86 | 913 | 160 | 215 | 2800 | 1800 | 1860 | 3300 | ||
10 | 145 | 23.87 | 843 | 160 | 215 | 2800 | 1800 | 1860 | 3300 |
