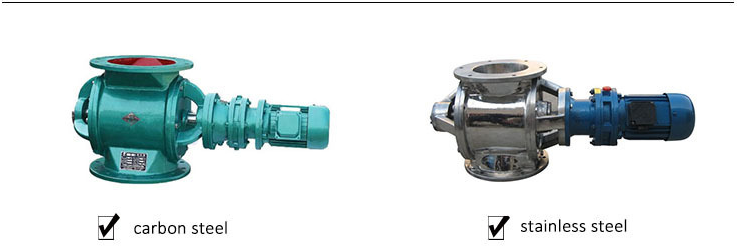

Air-Lock valve
Air-lock valve is specially designed as power and buik material discharge device under silo, storage bin, hopper etc.It is different from other feeders as it has the features that it can control the material discharge from siol, mixer, cyclone or hopper uniformly,and it can lock the air with material's gravity.
Air-lock valve is a discharge device, material will go through the valve wihout stopping machine and discharge material from cyclone or silo. It is widely used as feeding equipment for a materials system in building materials, chemicals, metallurgy and light industries.
1、Simple structure,
2、Good use effect,
3、Convenient maintenance,
4、Small volume.
Type | Production capacity(m3/h) | Rotate speed(r/min) | Type of speed reducer |
JLφ200×200 | 7 | 31 | YCT170-B5-1.1-31 |
JLφ300×300 | 23 | 31 | YCT215-B5-1.1-31 |
JLφ400×400 | 53 | 31 | YCT250-B5-3-31 |
JLφ500×500 | 106 | 31 | YCT250-B5-5.5-31 |
